About

The plugin provides integration with Asterisk PBX. The application’s users can occupy numbers as operators of a call-center and process incoming calls. There are tel: links generated for performing outgoing calls from SIP clients, history of those has been tracked other process messages together with incoming calls.

Setup

You can see (queue Plugin Asterisk) the plugin operation in Demo System.

Trunk

A SIP Trunk connects your PBX with the rest of the world voice calls network. It must have a phone number(s), which is used for accepting incoming calls, which later forwarded to your PBX’s internal users. That number is also treated as the from for outgoing calls.

To obtain such a trunk, you have to select a SIP Number Provider and configure there a number, connected to your PBX via a trunk. Typically there are have to be defined IP address and port (5060 default for SIP) of the PBX.

For ability to make outgoing calls from your PBX users via the provider there have to be delivered host and port. And sometimes a secret for authentication needs. Ways of self-configuration of these settings differ for providers, in the table below are described for some of them.

Novofon

Create a Number: https://my.novofon.ru/vpbx/connecting-numbers

numbers

Create a SIP trunk: https://my.novofon.ru/vpbx/sip-trunk

trunk create

The properties of the trunk, 91.99.128.52 is the IP of the connected PBX:

trunk properties

Connect the number with the trunk:

numbers trunk edit
number trunk
numbers trunk set

PBX

FreePBX is an web-based shell for Asterisk PBX, allowing to configure it with UI. Despite on much more complex configuration, it is still possible to use bare Asterisk, in this case skip the sub-chapters below until AMI.

Install

FreePBX 17 can be installed on a dedicated Debian 12 system:

cd /tmp
wget https://github.com/FreePBX/sng_freepbx_debian_install/raw/master/sng_freepbx_debian_install.sh  -O /tmp/sng_freepbx_debian_install.sh
bash /tmp/sng_freepbx_debian_install.sh
The process takes ~ 20 minutes for 2 CPU VPS with 4 GB RAM

After the script has done, reach the server via HTTP and finish setup there.

setup

Users

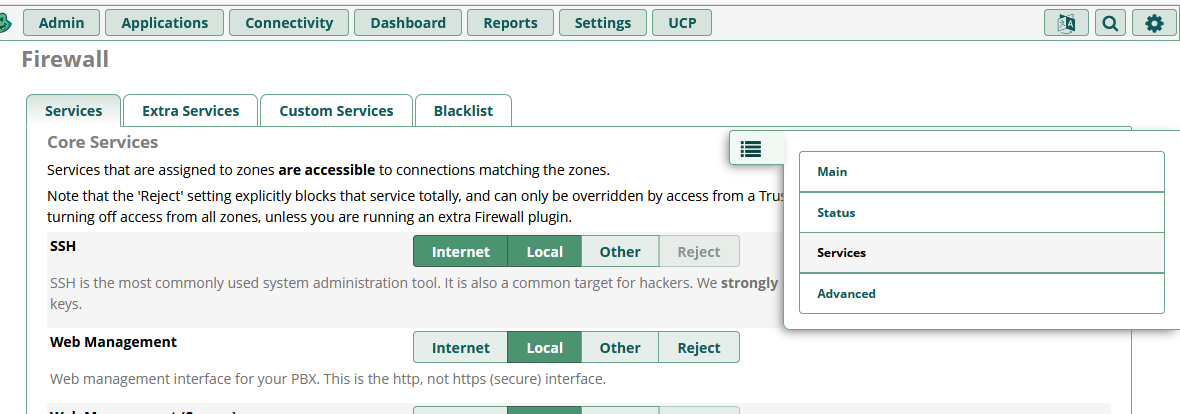

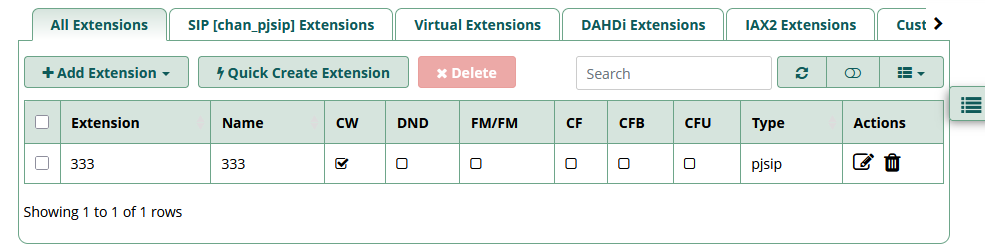

There is an internal number 333 created after installation. It can be seen in Admin / User Manager.

user manager

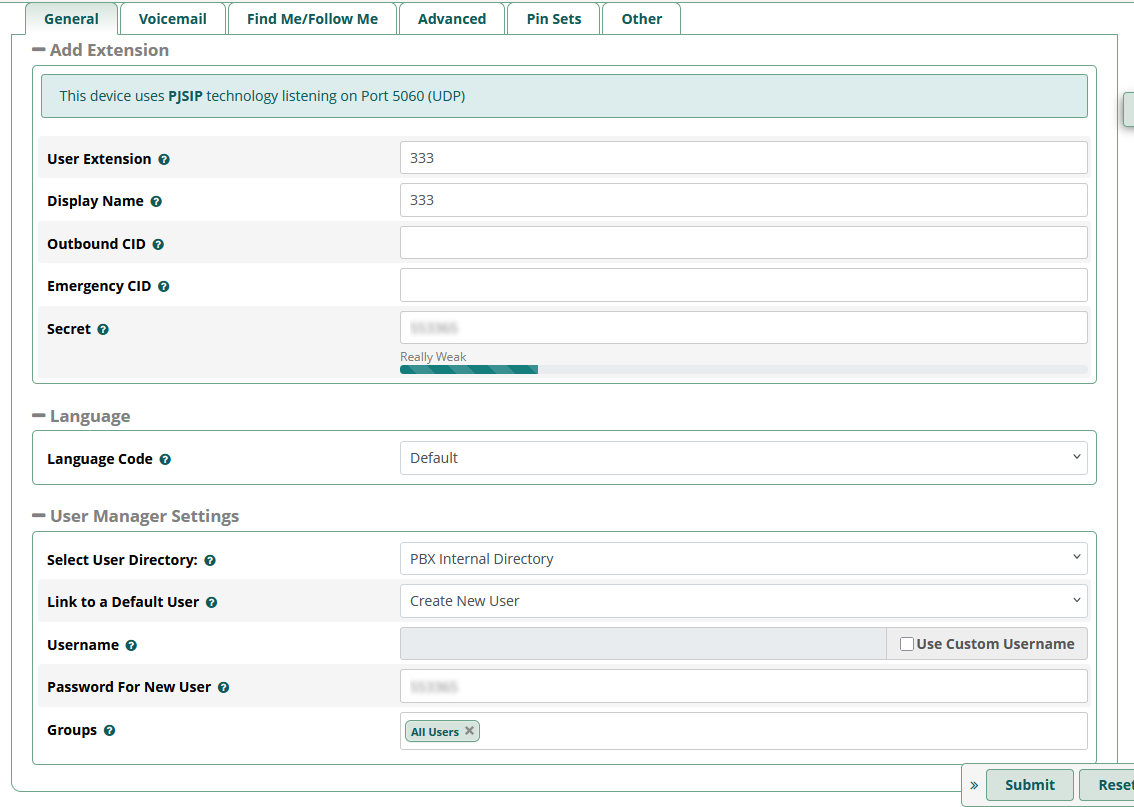

In menu Connectivity / Extensions might be seen user password (Secret). It is blurred and shown only when mouse pointer is on it.

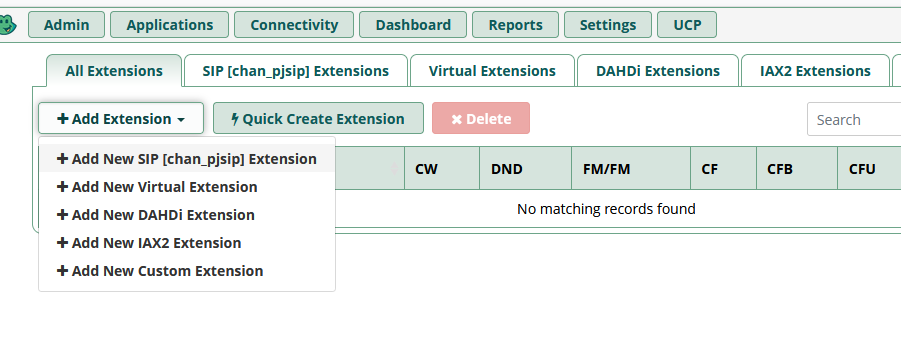

con ext

The user credentials should be used in a SIP Client on your choice.

Trunk

Under Connectivity / Trunks have to be configured Trunk(s) to the external phone network.

trunk general
trunk pjsip

Route IN

In Connectivity / Inbound Routes is defined the configuration for incoming calls. Among many available options to handle those, they can be forwarded to PBX’s users using Queues.

route in

Here is the simple queue configuration, available in Application / Queues

queue

Forwarding to only one existing user 333

queue agents

Usually before forwarding calls to PBX users responds an IVR. Records for that may be uploaded to Admin / System Recordings.

AMI

Application Manager Interface (AMI) provides the way for integration with the Plugin. That listens Asterisk events using TCP connection, defined in file /etc/asterisk/manager.conf. Change the file in the following way:

[general]
enabled = yes
port = 5038
bindaddr = 0.0.0.0

[<AMI_LOGIN>]
secret = <AMI_SECRET>
deny = 0.0.0.0/0.0.0.0
; allowed networks with masks
permit = 127.0.0.1/255.255.255.0
permit = <BGERP_IP>/255.255.255.0
read = call
writetimeout = 5000

Where:

  • <AMI_LOGIN> and <AMI_SECRET> - connection credentials, used by the Plugin;

  • <BGERP_IP> - IP address where your BGERP is running.

To apply the changes call core reload Asterisk CLI command, for FreePBX it can be done in menu Admin / Asterisk CLI.

core reload

Debug

Use sngrep utility to capture SIP traffic.

sngrep

SIP Clients

The clients connect to Asterisk server and used as phone devices.

Client and Platforms Configuration

https://www.linphone.org/en/getting-started iOS, Android, GNU/Linux, macOS, Windows

Add an Account

https://www.microsip.org/ Windows

Popup menu Edit Account

Plugin

Make sure the plugin is enabled and append to the configuration:

asterisk:amiManager.{@inc:cnt}.messageTypeId=<MESSAGE_TYPE_ID>
asterisk:amiManager.{@cnt}.host=<HOST>
asterisk:amiManager.{@cnt}.login=<AMI_LOGIN>
asterisk:amiManager.{@cnt}.pswd=<AMI_SECRET>
# optional
# change default AMI port
#asterisk:amiManager.{@cnt}.port=5038
# speeds connection process up or solves problem with undetectable version
#asterisk:amiManager.{@cnt}.version=<VERSION>
# redefinition of listener, the custom class has to extend the defined below
#asterisk:amiManager.{@cnt}.listenerClass=<LISTENER_CLASS>

Where:

Example:

asterisk:amiManager.{@inc:cnt}.messageTypeId=1
asterisk:amiManager.{@cnt}.host=192.168.0.10
asterisk:amiManager.{@cnt}.login=crm
asterisk:amiManager.{@cnt}.pswd=234567

Outgoing Calls

Calling number for Outgoing Calls can be adapted using JEXL expression, assigned for message type Call with expressionOutNumberPreprocess key. To the JEXL context passed the following variables:

Sample of such a script, appending calling prefixes depends on some list process parameter value.

messageType.50.expressionOutNumberPreprocess=<<END
    if (!value) return;

    prefix = null;

    operator = pp.listValueIds(68);
    if (1 =~ operator)
        prefix = "084";
    else if (2 =~ operator)
        prefix = "056";

    if (prefix) {
        prefix = prefix + "7";

        log.debug("prefix: " + prefix + "; value: " + value);

        for (item : value.getItemList()) {
            phone = item.getPhone();
            if (phone.length() == 11)
                item.setPhone(prefix + phone.substring(1));
        }
    }
END

Debug

Incoming API events are written down to log/bgerp.debug.log file. The plugin catches NewStateEvent like this:

01-24/15:16:49 DEBUG [Asterisk-Java ManagerConnection-216-Reader-0:AsyncEventPump] AmiEventListener - AMI event: org.asteriskjava.manager.event.NewStateEvent[dateReceived='Fri Jan 24 15:16:49 ALMT 2025',privilege='call,all',linkedid='1737713805.909',server=null,calleridname=null,channel='PJSIP/114-000001ec',language='ru',exten='s',calleridnum='114',context='external-context',state='Up',callerid='114',connectedlinenum='8707xxxxxxxx',uniqueid='1737713805.923',timestamp=null,channelstatedesc='Up',systemname=null,connectedlinename=null,sequencenumber=null,priority='1',channelstate='6',accountcode='',systemHashcode=1996251948]

Fields connectedlinenum is treated as FROM and callerid as TO number respectively.

Output of asterisk-java can be enabled in logger configuration.

# for debugging library
log4j.logger.org.asteriskjava=DEBUG, filed

Usage

Number Occupation

In Messages tool user can occupy an internal SIP number, used by him for connection to Asterisk. The offered number can be configured and even automatically occupied on user login.

number occupy

If the wanted number is already used by someone else, the confirmation dialog has shown.

number occupy confirm

For the user, whose number was taken, sent an information news about.

number occupied news

Successfully occupied number does look so. The Release button should be used for releasing the number.

number occupied

Process Incoming

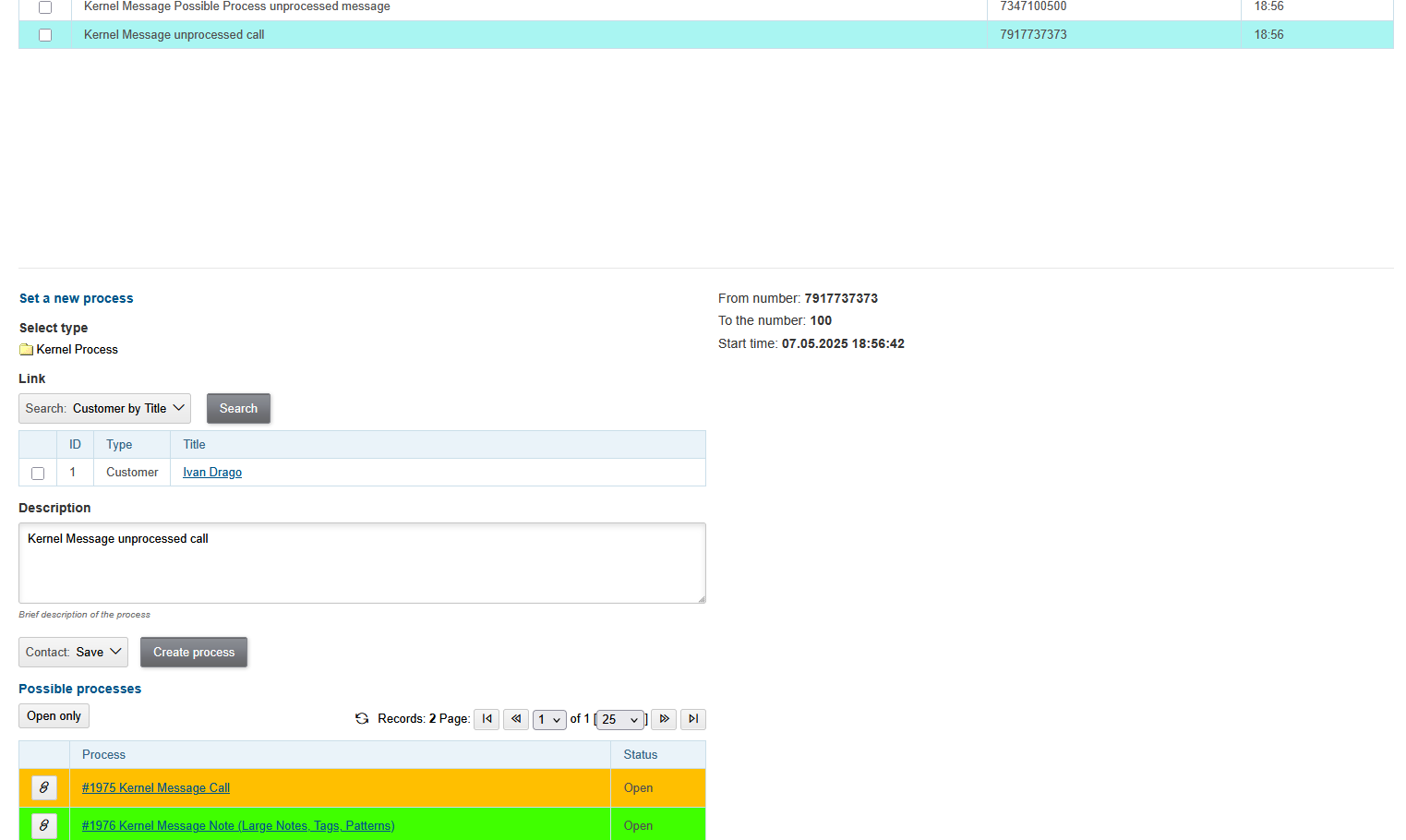

After occupation a number by a user, all the accepted calls there must be registered as messages and opened for processing.

incoming processing

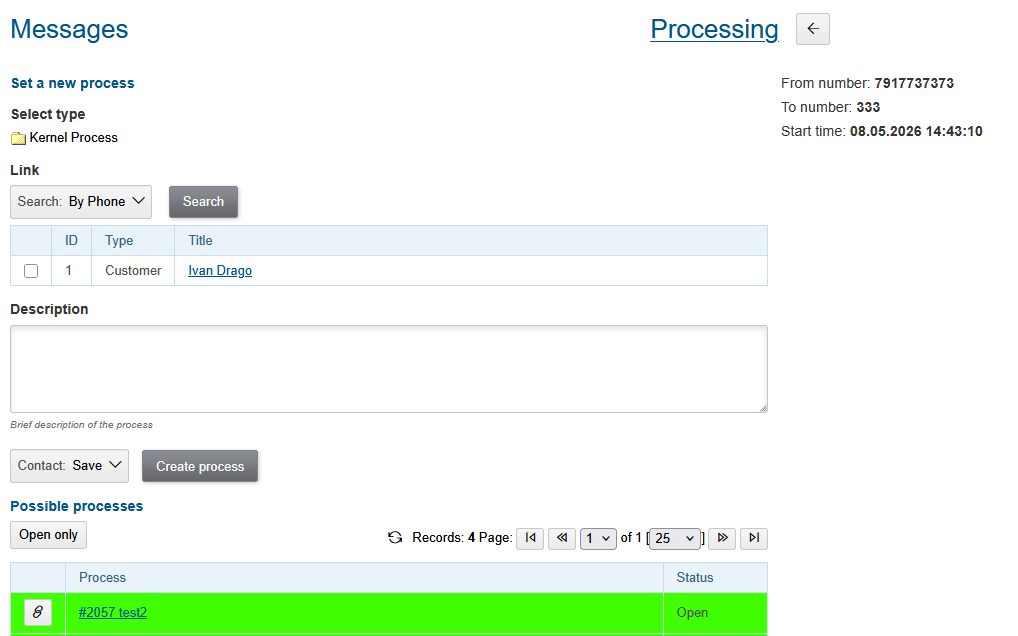

To simulate such an incoming call from an arbitrary number, can be used Test button.

incoming call test
The test area can be hidden by disabling Test incoming call action in user permissions.

Outgoing Calls

On hover mouse pointer over param phone values the plugin shows popup menu for making outgoing calls.

outgoing call popup
The popup menu isn’t shown if parameters were edited after opening process, for this case refresh the process card.

The calls itself are passed to OS application with tel: link.

outgoing call app

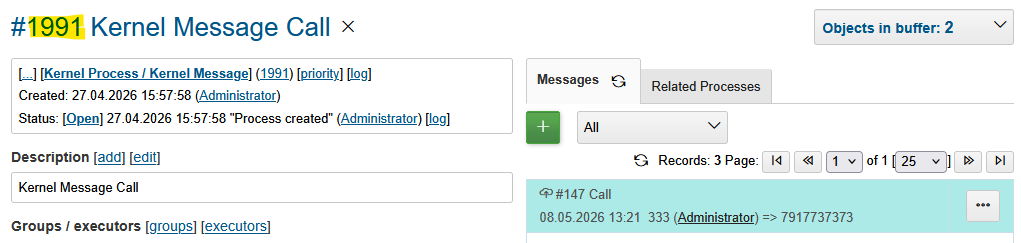

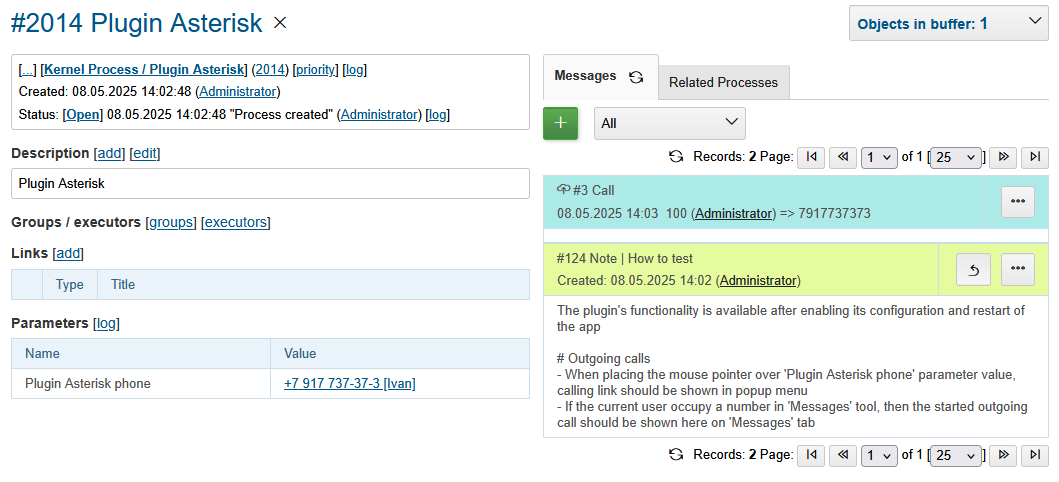

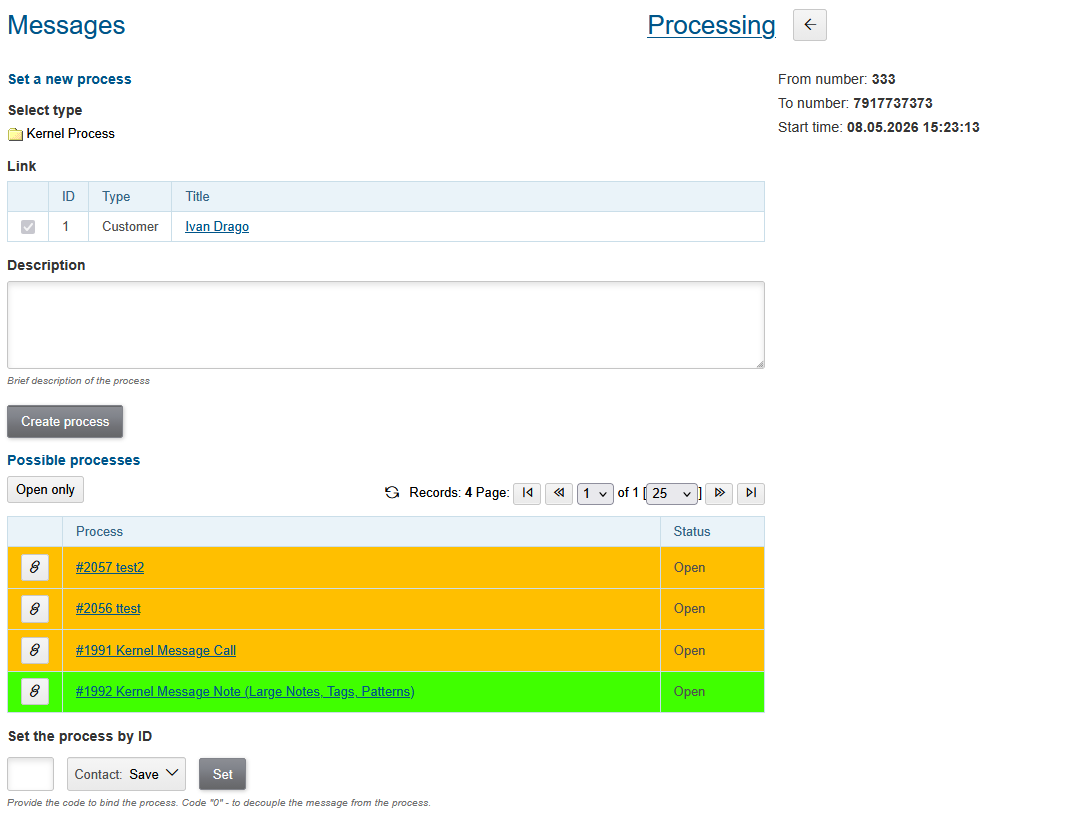

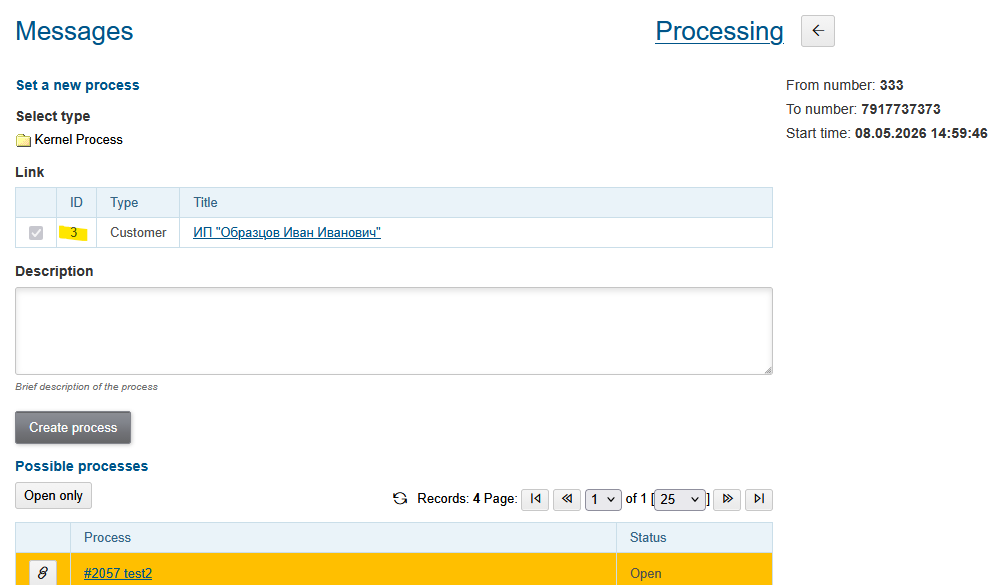

If the current user’s number is occupied, once a call being responded, it appears in the Message tab of the process.

outgoing call
